Sprinkler

A fire sprinkler is an automatic device installed in buildings that sprays water to control or extinguish fires, enhancing safety and minimizing damage.

Technical Specifications

  • Temperature Rating: 68°C
  • Glass Bulb Colour: Red
  • Thread Size: NPT 1/2"
  • Glass Bulb Diameter: 5 mm
  • Max Service Pressure: 175 psi
Enquiry

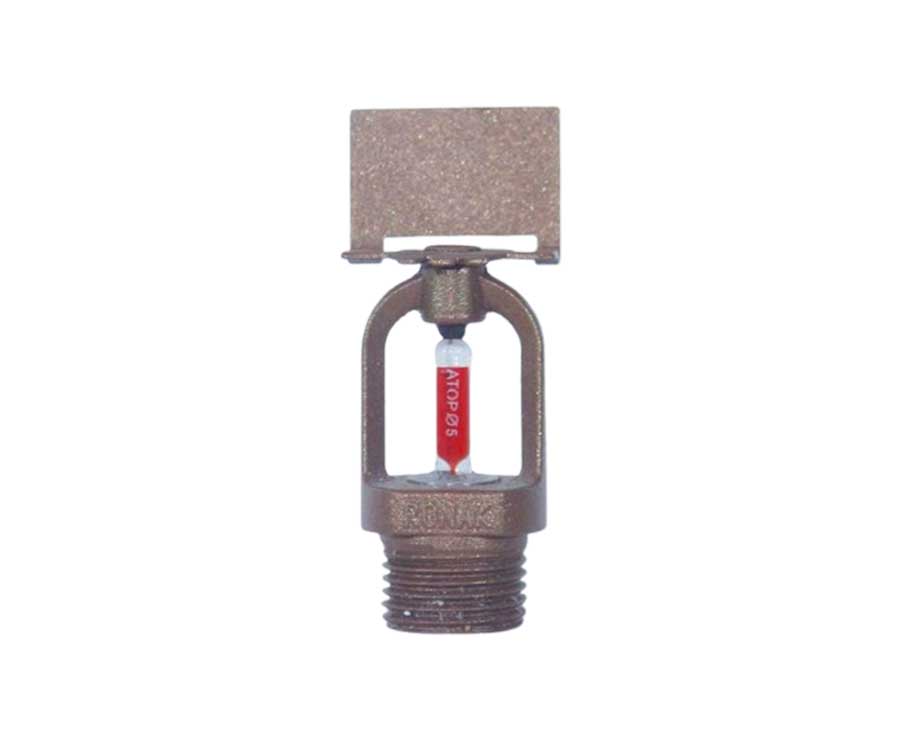

Side Wall Type

Dimensions

Specification Side Wall Upright Pendant
Outer Diameter – 34 mm 31.8 mm
Inner Diameter 7.1 mm 7.1 mm 7.1 mm
Thickness 1 mm 1 mm 1 mm
Height 21.8 mm 21.8 mm 21.8 mm
Width (1) 29.5 mm 29.5 mm –
Width (2) 25.5 mm – –

Performance Test

  • Hydraulic Test – Tested at 21 kgf/cm²
  • Flow Test – 1800 LPM at 7 kgf/cm²

Finishing

Natural & Chrome Plated

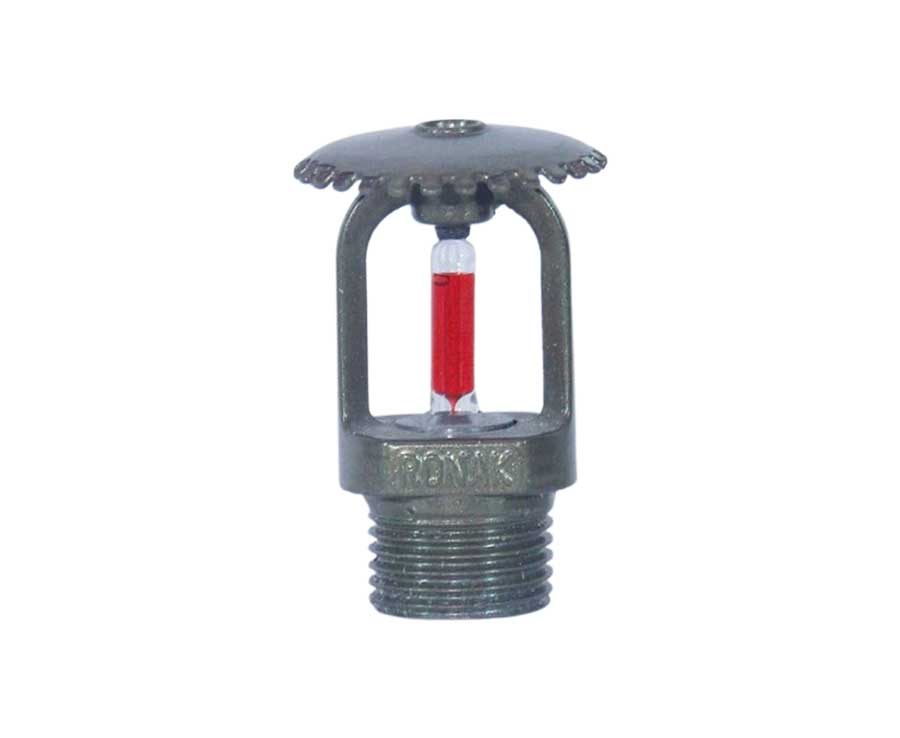

Upright Type

Dimensions

Specification Side Wall Upright Pendant
Outer Diameter – 34 mm 31.8 mm
Inner Diameter 7.1 mm 7.1 mm 7.1 mm
Thickness 1 mm 1 mm 1 mm
Height 21.8 mm 21.8 mm 21.8 mm
Width (1) 29.5 mm 29.5 mm –
Width (2) 25.5 mm – –

Performance Test

  • Hydraulic Test – Tested at 21 kgf/cm²
  • Flow Test – 1800 LPM at 7 kgf/cm²

Finishing

Natural & Chrome Plated

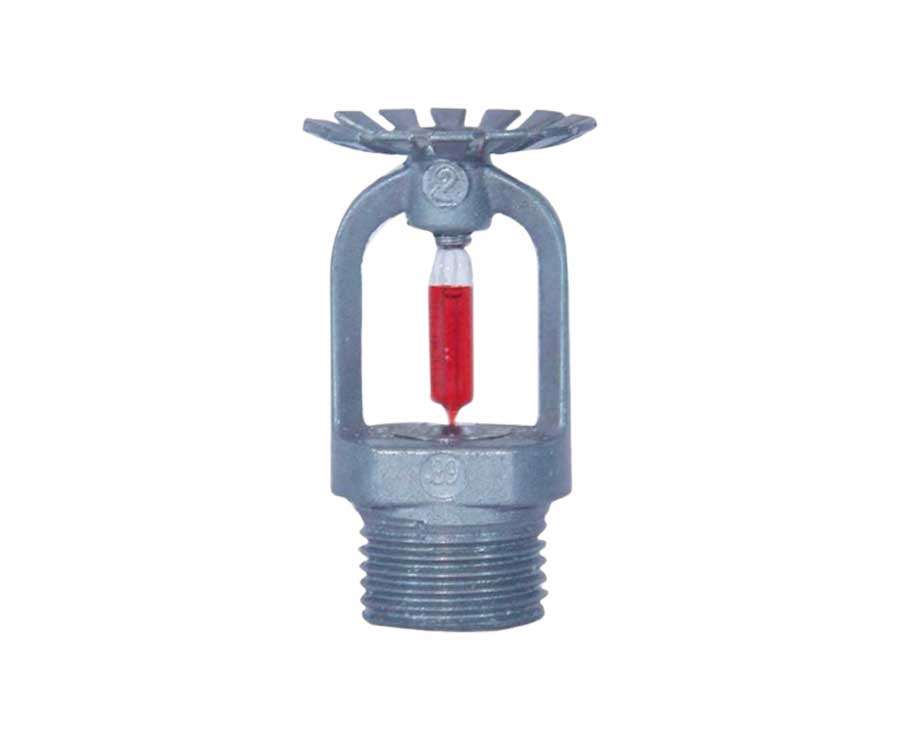

Pendant Type

Dimensions

Specification Side Wall Upright Pendant
Outer Diameter – 34 mm 31.8 mm
Inner Diameter 7.1 mm 7.1 mm 7.1 mm
Thickness 1 mm 1 mm 1 mm
Height 21.8 mm 21.8 mm 21.8 mm
Width (1) 29.5 mm 29.5 mm –
Width (2) 25.5 mm – –

Performance Test

  • Hydraulic Test – Tested at 21 kgf/cm²
  • Flow Test – 1800 LPM at 7 kgf/cm²

Finishing

Natural & Chrome Plated
